The Stealth AX

Real time illegal RF Audio Signal Detector in 24/7

The Stealth AX is a wide-band RF scanning surveillance device to detect illegal RF eavesdropping activities in the security area in 24/7. It analyses the RF environment of the installed area and detects any suspected RF signal. It transmits a warning signal with the detected suspect RF signal via network or Internet to the central monitoring center to analyze it whether a illegal eavesdropping signal or not.

The operator in the central monitoring center is able to check any suspected signal by audio and can be record the data as corroborative evidence. As a information surveillance system, it will be used efficiently anywhere in the limited area or overseas offices because it just needs a line of Internet.

It demodulates the suspected signal into the actual audio type, so the user can response the warning signal immediately without the difficult spectrum analyzing of it. The central monitoring center report can report the suspected activity to the client immediately or able to set up sending a real time SMS to client when the Stealth AX detects a suspected RF signal.

Main Features
• Detects RF audio signal and output like a radio or transmits via Internet, Intranet,

• Optimized white noise generator to prevent a laser tapping. - 2 Channels

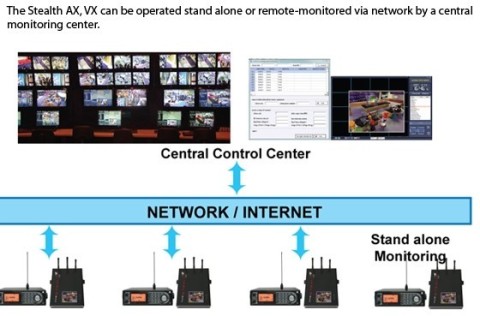

• Stand alone or central monitoring operation possibility

Specifications
- RF Monitoring and Detection

• Frequency Range: 25MHz - 1300MHz
• Receive Mode: WFM, FM, AM
• Receive Sensitivity: 0.2μV - 0.6μV
• Sweeping Time: less than 10 Sec.

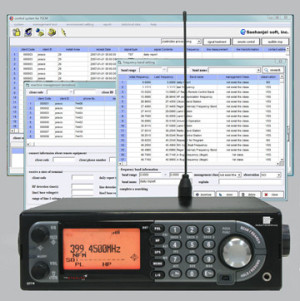

• Control Panel and PC control capability

- Acoustic Noise Generator

• 2Channels - Out put: 7 Watts per a channel @ 4 Ω

- Data Transmission

• Network: LAN, Internet
• Transmit Data: ID, Frequency, Time, Voice Data

- Power: AC 80 - 240 V

- Dimension: W 7.2 x L 9 x H 2 (inch)

Recommanded cooperating product

• The Stealth VX - Illegal RF Camera Signal Detector
