The Stealth VX

Real time illegal RF Camera Signal Detector in 24/7

The Stealth VX is a wide-band RF camera scanning surveillance device to detect illegal RF video camera activities  in the security area in 24/7. It displays the image of RF camera as same as the illegal RF receiver gets from the camera when it detects any suspected RF video signal. It also transmits the detected suspect RF signal to the central monitoring center via network or Internet to analyze it whether a illegal camera signal or not.

The operator in the  central monitoring center could be able to check any suspected signal on the monitor without the difficult spectrum analyzing of it and can be record the data as corroborative evidence. As a information surveillance system, it will be used efficiently anywhere in the limited area or overseas offices because it just needs a line of Internet.

It demodulates the suspected signal into the actual video/audio on the installed LCD screen and the monitor in the central monitoring center, so the user can response to the illegal activity and find the installed camera immediately. The security person can receive  SMS or E-mail warning when it detects any suspected RF video activities, and  the  detected Video image can be viewed on any Internet browser and  a mobile phone by the permitted security personnel . The central monitoring center can report the suspected activity to the client or the security department immediately or able to set up sending a real time SMS to client when the Stealth VX detects a  suspected RF signal.

Main Features
• Detects Wide-Band RF video signal and displays the image on the its screen with  the audio signal.
• Transmits the detected RF video signal via Internet or Intranet with a warning.
• the detected image can be viewed on a Browser and a Mobile Phone by the registered person.

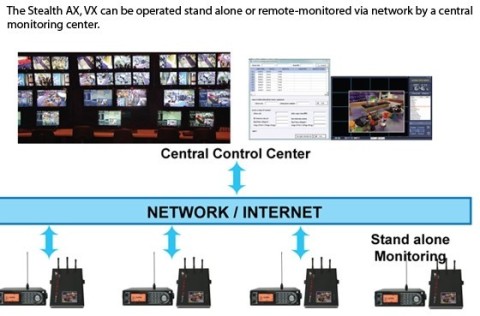

• Stand alone or central monitoring operation possibility

Key installation areas
• Corporate Head quarters
• CEO’s and Managing Directors Offices
• Corporate Board Rooms
• Conference Rooms
• Law Enforcement Agent and Government Office
• Security Controlled Zones
• Major Hotel Conference Rooms & Executive Suites
• Lawyers and Solicitors Premises
• Casinos
• Celebrity’s House

Specifications
- Detect Method: Video Sweep
- Scanning Time : Less than 30 Seconds
- Scanning Band:

• 900 MHz~6.0GHz Major ISM Band
• 3 bands synchronous scanning
• Auto Band switching

- Detect Mode: NTSC, PAL / SECAM
- Monitor: 3.5 inch High Resolution LCD Color Monitor
- Antenna: 3 SMA antennas

- Data Transmission via LAN or Internet

• Transmit Data: ID, Time, Audio/Video Data

- Power: AC 80 - 240 V

- Dimension: W 7.2 x L 9 x H 1.75 (inch)

Recommanded cooperating product
• The Stealth AX - Illegal RF Audio Signal detector
